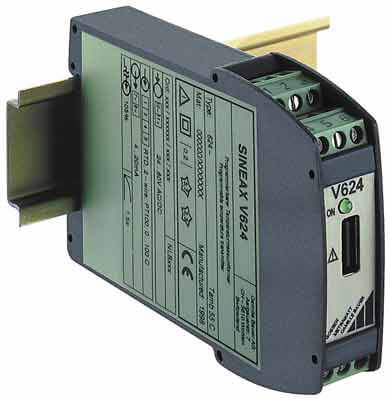

SINEAX V624

Name: SINEAX V624 | TECOSTORE.VN
Brand: Gossen Metrawatt
SKU: GM144
Rating: 5 (1 reviews)

Liên hệ

Mã sản phẩm:

GM144

Hãng sản xuất:

Gossen Metrawatt

Danh mục:

Chưa phân loại

Ngành ứng dụng:

Đang cập nhật...

Thẻ: GM144 Gossen Metrawatt, Gossen Metrawatt

Mô tả

The SINEAX V624 converts measured quantities (i.e. signal from a thermocouple
or a resistance thermometer) into a proportional, analog output quantity.

Measurement inputs for sinusoidal, square-wave or distorted nominal input
voltages with dominant fundamental wave
Generator and bus bar input voltage: 10 to 690 V
Nominal input frequency: 50 Hz
Auxiliary power: 85 to 230 V AC/DC
Input frequency response time periods: 4
Measuring range limits: ± 10° to < ± 180° el
Measurement output available with unipolar, bipolar or live-zero output
quantities
Measuring method: acquires distance between zero-crossings
Power supply: integrated AC-DC power pack with large tolerance range for
universal use
Standard GL (Germanischer Lloyd) / suitable for use on ocean-going vessels
Housing: P13/70 housing for top-hat rail mounting
CSA certificate, German Lloyd approval
