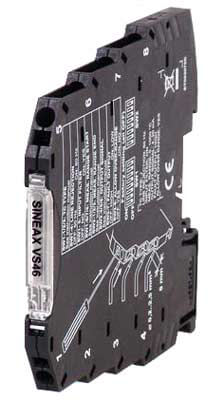

SINEAX VS46

Input Supply voltage at 20mA 18V No-load voltage 26 V Short-circuit current 25 mA Signal 4 ... 20 mA Short-circuit/breakage monitoring with LED Output Signal 4 ... 20 mA Load 750 Ω

Power Supply  low 20... 70 V AC/DC high 50... 265 V AC/DC high Ex 50... 125 VDC / 265 VAC Ex Protection Type of protection EEx ia] IIC Ex II (1) GD Uo: 28 V, Io: 93 mA, Po: 651 mW Mechanics Dimensions LxWxH 114 x 17,5 x 69,2 mm   Flammability class UL 94 V0   Ambient temperature   -20... +55 ºC
