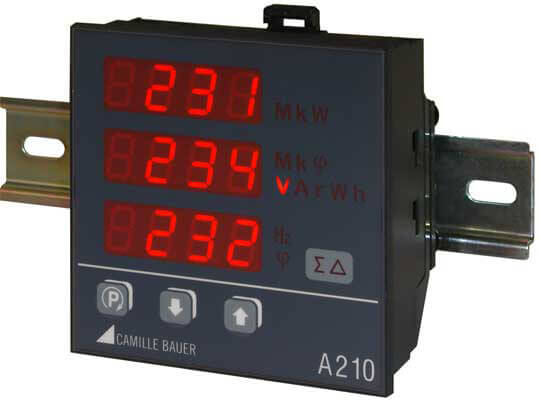

SINEAX A210

Name: SINEAX A210 | TECOSTORE.VN
Brand: Gossen Metrawatt
SKU: GM73
Availability: InStock
Rating: 5 (1 reviews)

SKU: GM73

LIÊN HỆ Vui lòng liên hệ để nhận báo giá phù hợp

Thanh toán an toàn

Hỗ trợ chuyên nghiệp

Đổi trả dễ dàng

Giao hàng tận nơi

Measurement and display of all values of a 3-phase current system

Measuring input : Nominal voltage 57.7...288 V_LN, 100...500 V_LL
Nominal current 1 / 5 A
Frequency range 45...50/60...66 Hz
TRMS up to 56th harmonic
System types: Three-phase, 3 or 4-wire asymmetrical
Power supply: 60 ... 300 V AC/DC
Accuracy: Voltage and current ±0.2 %
Active and reactive power ±0.2 %
Power factor ±2.0°
Harmonics ±1.0 %
THD U,I ±1.0 %
Active energy Class 0.5
Reactive energy Class 2
Outputs: 4000 pulses / kWh
Interface: RS485 (Modbus RTU)
Display: Menu-guided TFT touchscreen, digital and graphic representations
Meters: Active and reactive energy meter incoming and outgoing representable effective value, daily or monthly report
Counters: Operating hours counter for one consumer and the device itself
Safety:
Double insulation
Degree of pollution: 2
Overvoltage category : CAT III 300 V
Protection rating: Front IP54, housing IP20
Dimensions: Control panel installation: 96 x 96 x 80 mm
