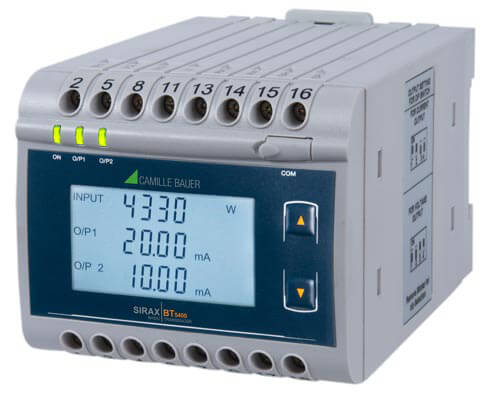

The SIRAX BT5400 is used to measure and convert active, apparent, reactive power,
phase angle & power factor of a single phase or 3-phase AC system with
balanced or unbalanced load into an proportional DC current or voltage output
signal.

Measurement method: rectifier process
Measurement input: alternating voltage sinusoidal, arithmetic mean value measurement, effective value calibration
Measuring range limits: 0...50 to 0...600 V
Measurement output: Unipolar and live-zero
0...1.0 to 0...20 mA resp. live-zero 0.2...1 to 4...20 mA or
0...1 to 0...10 V resp. live-zero 0.2...1 to 2...10 V
Also available with power supply via output circuit at 2-wire connection
Power supply: AC or DC power supply or wide DC, AC power pack tolerance
Standard as marine version per Lloyd’s Register of Shipping
P8/35 housing for top-hat rail mounting
CSA certificate, German Lloyd approval
