SIRAX BT5300

Name: SIRAX BT5300 | TECOSTORE.VN
Brand: Gossen Metrawatt
SKU: GM156
Availability: InStock
Rating: 5 (1 reviews)

Liên hệ

Yêu cầu báo giá

SKU: GM156 Danh mục: Chưa phân loại Thẻ: GM156 Gossen Metrawatt, Gossen Metrawatt Thương hiệu: Gossen Metrawatt

Mô tả
Thông số kỹ thuật

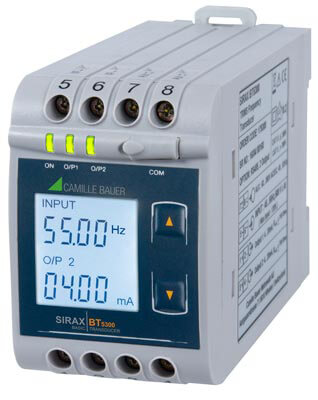

The SIRAX BT5300 is a top-hat rail mounted Transducer and used to measure and
convert frequency input into an proportional DC current or voltage output
signal. Input frequency and Output Voltage/Current is displayed on LCD and
indicated by LED’s.

Measuring method: logarithmic measuring method
Measurement input: sinusoidal or distorted alternating voltage, TRMS
measurement Input voltage: 0.. 20 to 0.. 690 V
Measurement output: unipolar and live-zero output quantities
from 0.. 1.0 to 0.. 20 mA or live-zero from 0.2.. 1 to 4.. 20 mA, or
from 0.. 1 to 0.. 10 V or live-zero from 0.2.. 1 to 2.. 10 V
Characteristics as expanded voltage scale or expanded primary value scale
at the lower or upper range
Power supply: AC auxiliary power, or integrated AC-DC power pack with
large tolerance range
P13/70 housing for top-hat rail mounting

SIRAX BT5300
