Thiết bị hiển thị SIRAX BM1450

Name: Thiết bị hiển thị SIRAX BM1450 | TECOSTORE.VN
Brand: Gossen Metrawatt
SKU: GM76
Availability: InStock
Rating: 5 (1 reviews)

Hãng sản xuất: Gossen Metrawatt (Xem thêm sản phẩm của hãng)

SKU: GM76

Danh mục: Chưa phân loại

Thẻ: GM76 Gossen Metrawatt, Gossen Metrawatt

LIÊN HỆ Vui lòng liên hệ để nhận báo giá phù hợp

Yêu cầu báo giá LIÊN HỆ ĐỂ CÓ GIÁ TỐT

Thanh toán an toàn

Hỗ trợ chuyên nghiệp

Đổi trả dễ dàng

Giao hàng tận nơi

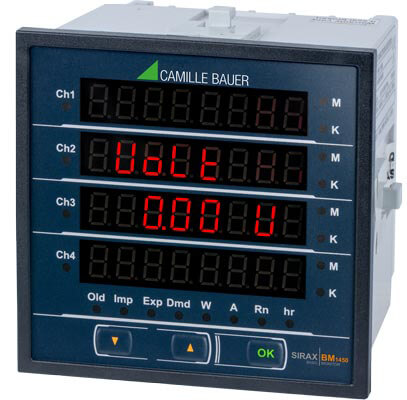

The SIRAX BM1450 multifunctional DC energy meter can be used for monitoring
and controlling in DC systems.

These meters measure a wide range of electrical parameters such as DC
voltage, current, power, energy and many more. It supports bi-directional
voltage and current measurement, 1 channel voltage input, 4 channel current
input and 4 relay outputs. The large 4 line 8 digit LED display provides easy to
read data directly on the meter front. The configuration can be done on site via
three push buttons or via RS485/Modbus RTU.

Measuring input:
Nominal voltage 57.7...277 V_LN, 100...480 V_LL
Nominal current 1 / 5 A
Frequency range 45...50/60...66 Hz
System type: three-phase, 3 or 4-wire asymmetrical
Power supply : 100...250 V AC/DC
Accuracy:
Voltage and current ±0.5 %
Active and reactive power ±0.5 %
Power factor ±3.0°
THD U,I ±1.0 %
Active energy Class 0.5
Reactive energy Class 2
Outputs: Analog 2 x 4...20mA, Relays 1 NO / 1 NC
Interface: RS485 (Modbus RTU), Ethernet (Modbus TCP)
Display: LED display, 3 lines, 4 digits each, measured values
Meters: Active and reactive energy meter incoming and outgoing
Counters: Operating hours counter for one consumer and the device itself
Safety:
Double insulation
Degree of pollution: 2
Overvoltage category: CAT III 300 V
Protection rating: Front IP54, housing IP20
Dimensions: Control panel installation: 96 x 96 x 80 mm
