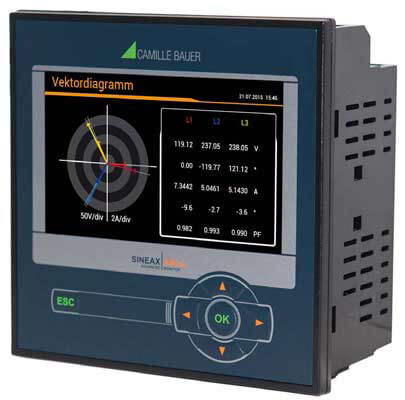

Thiết bị đo lường và giám sát SINEAX AM3000

Thiết bị đo lường và giám sát SINEAX AM3000 - Ảnh 2

Thiết bị đo lường và giám sát SINEAX AM3000

Name: Thiết bị đo lường và giám sát SINEAX AM3000 | TECOSTORE.VN
Brand: Gossen Metrawatt
SKU: GM83
Availability: InStock
Rating: 5 (1 reviews)

Liên hệ

SKU: GM83 Danh mục: Chưa phân loại Thẻ: GM83 Gossen Metrawatt, Gossen Metrawatt Thương hiệu: Gossen Metrawatt

Mô tả
Thông số kỹ thuật

The SINEAX AM3000 is a comprehensive instrument for measurement and
monitoring of power systems.

It stands out by the display quality and intuitive operation. The device
provides a wide functionality, which can be extended further by means of
optional components. It can be used directly for any system, from single phase
up to 4-wire unbalanced networks, without hardware modifications.

Ethernet interface
- Device parameterization via WEB browser
- Firmware update
- Measurement display
- Measurement acquisition via control system (Modbus/TCP)
- Service and maintenance
Data Logger
Allows to record periodically or event-triggered measurement data: Load
curves, measurement variations, meter readings, alarm states, disturbances.
A micro SD card serves as storage media and allows almost unlimited
recording times.
Process I/Os
In addition to the standard I/Os (1 digital input, 2 digital outputs) up to
four I/O extensions can be implemented in the device. You may select from:
- 2 relay outputs
- 2 analog outputs ±20mA
- 4 analog outputs ±20mA
- 4 S0 digital inputs active
- 4 S0 digital inputs passive
- Temperature Inputs: Measurement sensor Pt100 / PTC
Fault current detection
Each fault current module provides two channels for monitoring differential
or fault currents in earthed AC current systems. In any case measurement has
to be performed via suitable current transformers, a direct measurement is
not possible.
Time synchronization via GPS
Very accurate time synchronization of the measurement device using a
preconfigured GPS receiver (accessory).
IEC 61850 interface
PROFINET IO interface
