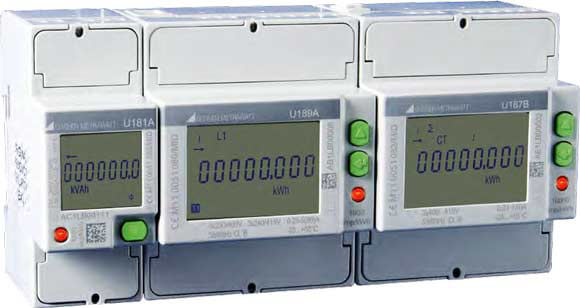

The calibrated, compact energy meters included in our Compact Line product range can be used to acquire and bill active energy in industrial, household, commercial and building management applications.

Relevant values are transmitted to data logging, billing and optimizing systems, as well as to building automation and control technology applications, by means of 2 pulse outputs or the integrated infrared interface and an external interface module. Modbus, M-Bus and Ethernet are currently supported.

The meter also measures all of the electrical system’s essential parameters and makes them available via the infrared interface. Energy and instantaneous power values appear directly at the display.

PROFIBUS-DB interface (incl. handling blocks and demo project)
Remote tool CompactRemote (only for PROFIBUS type)
PDPI - Algorithm for Induction Heating Systems - see pdf below
pH-Value Control - see pdf below
Dark keying of the display via binary output (for photo laboratories)
IP 67 protection
100 ms sampling cycle with integrated transformation for suppression of 50/60 Hz including harmonics up to the 13th harmonic
PDPI control without overshooting
Control parameter adaptation can be started at any time
2-step, 3-step, continuous action and step-action controller
Fixed-value, differential, slave and switch controller
Program controller – 8 programs with 12 segments
Split range controller (discontinuous and continuous)
Hot-runner control with actuating circuit and booster circuit
Water cooling control (non-linear cooling effect with evaporation)
Temperature limiter
Data logger for actual values and setpoints
Alarm history with time stamp
Infrared interface at front panel with optional adapter
Password protection
CompactConfig software tool
Structured operating and programming system
RS 485 Modbus interface (optional)
Functionally compatible with R2600 electronic controller
3 Years Warranty
Made in Germany

Sensor input for thermocouples, Pt100, Ni100, direct current, direct voltage (optional)
Thermocouple input immune to leakage current (up to 230 V)
Suitable for zones with temperature rises of up to 100 K/s
Monitoring for sensor failure, reversed polarity and short-circuiting
Plausible regulated temperature becomes active in the event of sensor failure
Setpoint ramps (up-down), proxy setpoint, setpoint limiting
Heating circuit monitoring without additional transformer
Heating current monitoring via external current transformer (optional)
Numerous monitoring functions and alarms
Current settings can be saved as user defined standard settings – default values can be restored
