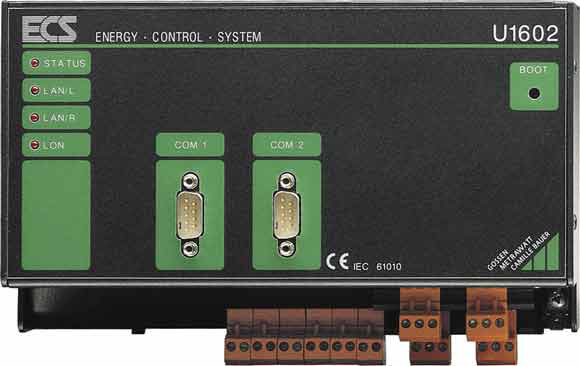

The U1602 micro-summator is used as a PC adapter or a LON interface for the ECS-LAN, and is not equipped with its own display or control
elements.

All relevant energy and power consumption data are acquired by 64 processing channels over defined periods of time at a programmable interval, and are stored to memory as load profiles along with corresponding maximum
values.

Up to 63 U168X electrical energy meters can be connected to the U1602 micro-summator via the electrically isolated LON interface. Converters can be used for digital and analog input
signals.

Two RS 232 interfaces (115kBit/s) allow for communication with external devices such as PC, report printer, modem or radio controlled clock for system time synchronization. Parameters configuration and data analysis are accomplished at the PC with
ECSwin.

Summators can be interconnected over great distances with the multi-master compatible ESC LAN which assures unrestricted access to all network user data.
Thanks to integrated high level intelligence and the customized ECL programming language, the summator is also suitable for customer-specific, decentralized solutions as a data logging, monitoring and optimization
device.

Compact, double-tariff energy meter for 4 quadrants, import and export, partial and aggregate meter and up to 30 measured values for real-time quantities
Variants for 2 and 4-wire-systems with 80 A direct-connection, or 1A and 5A transformer connection
Programmable current transformer ratio of 1 to 10000 and additionally displayable secondary value for energy
Double-tariff measurement with input for tariff switching
Partial meter can be started, stopped and reset
Active energy measurement per EN50470-3, class B, for industrial and commercial applications, as well as demanding household applications
Cost savings thanks to initial calibration at the factory in accordance with MID, conformity assessment procedure modules B and D
Reactive energy measurement per EN 62053-23, class 2
Phase sequence indicator and error detection for violation of voltage, current and frequency measuring ranges
2 programmable pulse outputs for energy values
Flexible communication via infrared interface and optional interface modules for M-Bus, Modbus and Ethernet
Large LCD panel with background illumination
Tamper-proof covers, configuration disabling
3 year guarantee
Made in EU
