R2900

Name: R2900 | TECOSTORE.VN
Brand: Gossen Metrawatt
SKU: GM101
Availability: InStock
Rating: 5 (1 reviews)

Hãng sản xuất: Gossen Metrawatt (Xem thêm sản phẩm của hãng)

SKU: GM101

Danh mục: Chưa phân loại

Thẻ: GM101 Gossen Metrawatt, Gossen Metrawatt

LIÊN HỆ Vui lòng liên hệ để nhận báo giá phù hợp

Yêu cầu báo giá LIÊN HỆ ĐỂ CÓ GIÁ TỐT

Thanh toán an toàn

Hỗ trợ chuyên nghiệp

Đổi trả dễ dàng

Giao hàng tận nơi

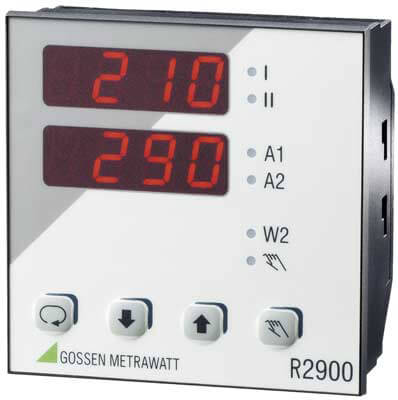

The R2900 temperature controller offers top functionality and flexibility with a minimal installation depth.

The harmonic-free PDPI control algorithm ensures best possible results, and its control parameters are determined by means of self-optimization.

IP 65 protection allows for use in harsh environments. Primary applications include temperature control in plastics processing and packaging machines, oven manufacturing and food
processing.

Digital displays for actual value, as well as setpoint / manipulating factor / heating current
Keys for manual operation
Proxy setpoint with external activation
Rising or falling setpoint ramp
Regulated temperature becomes active in the event of sensor breakage
Heating circuit and heating current monitoring
Adapted for export markets: 230 V / 110 V, degrees Celsius / Fahrenheit
3 Years Warranty
Made in Germany

Controller as two-position or three-position controller
Long (12 to 120 s), medium (6 to 75 s)
or short (1 to 15 s) time response
Type L, J, K, R and S thermocouple,
PT100 (2-wire) or direct current (5 mA, 20 mA) measuring ranges
1st switching output: relay or transistor
2 limit contacts (MIN / MAX)
Broken sensor fuse, direct and reverse-acting
Auxiliary voltages: 110 V_AC , 120 V_AC , 220 V_AC , 240 V_AC
