Mô tả

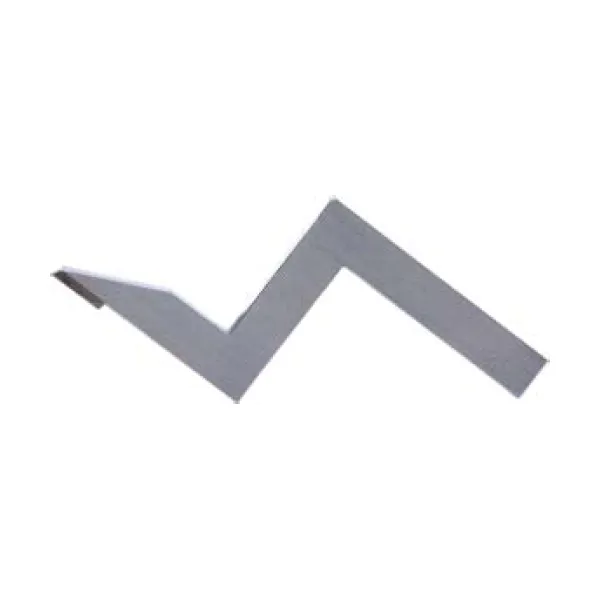

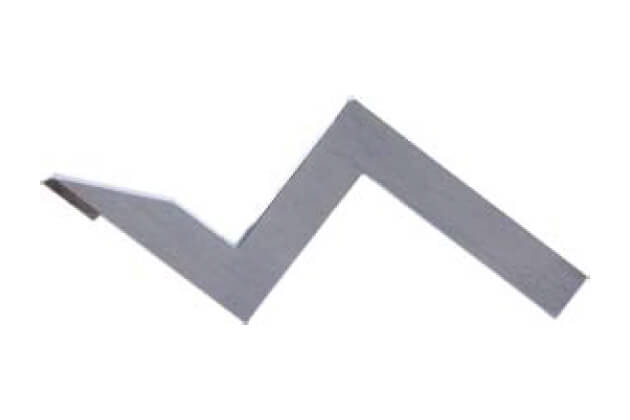

Mũi lấy vạch cho thước đo cao Insize 7150

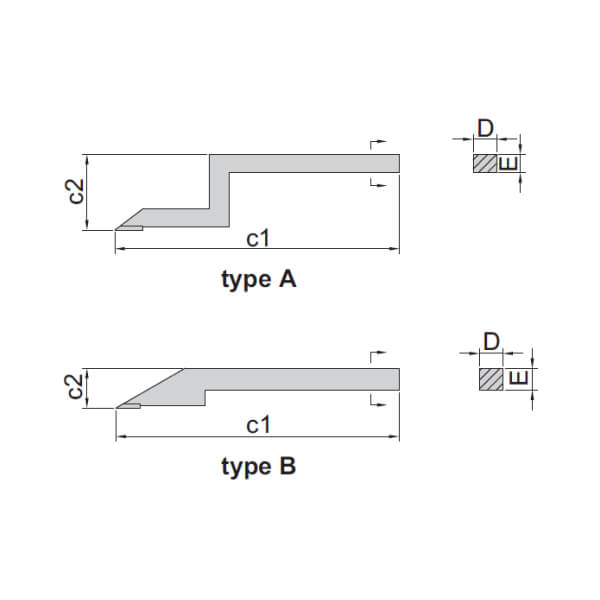

| Mã đặt hàng | Dành cho thước đo cao | Loại | c1 | c2 | D | E |
|---|---|---|---|---|---|---|
| 7150-SC1 | 1150-300 | A | 76mm | 25mm | 6mm | 8mm |
| 7150-SC2 | 1150-500, 1150-600 | A | 103mm | 25mm | 10mm | 12mm |
| 7150-SC3 | 1150-1000, 1150-1500, 1150-2000 | A | 110mm | 39mm | 10mm | 15mm |
| 7150-SC4 | 1351-300,1351-450, 1351-600 | B | 78mm | 15mm | 9mm | 9mm |
| 7150-SC6 | 1250-300,1156-300,1156-600 | A | 80mm | 30mm | 9mm | 9mm |
| 7150-SC7 | 1250-450, 1250-600 | A | 80mm | 41mm | 9mm | 9mm |
| 7150-SC9 | 1253-150, 1253-200, 1154-150 | B | 55mm | 12.5mm | 6mm | 8mm |
| 7150-SC10 | 1156-1000 | A | 92mm | 48mm | 9mm | 12mm |
