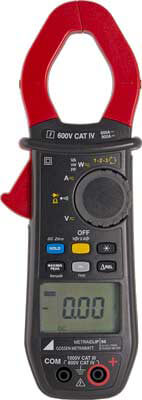

The METRAclip 86 clamp multimeter meets all of the expectations of operations in the electrical trades and is suitable for applications in the low-voltage range with low to medium power values, e.g. maintenance of electrical installations and machinery, troubleshooting, installation of heating and air conditioning systems and measurement of motor starting current.
| Clamp opening: | 48 mm
|
| Current: | AC | 99,99 / 999,9 A rms bei 10 Hz - 2 kHz |
| DC | ±99,99 / ±999,9 / ±1500 A dc |
| AC+DC | 99,99 / 999,9 A rms
99,99 / 999,9 / 1500 A peak |
| Inrush current: | | 10 ..1000 A rms / 1500 A peak
|
| Voltage: | AC | 99,99 / 999,9 V rms bei 10 Hz - 3 kHz |
| DC | ±99,99 / ±999,9 V dc |
| AC+DC | 99,99 / 999,9 V rms
99,99 / 999,9 / 1500 V peak
|
| Frequency: | | f (Uac) 5,0 Hz ..19,99 kHz
f (Iac) 5,0 Hz ..1999 Hz |
| Power: | Active power: | 9999 W / 99,99 / 999,9 / 1500 kW |
| Apparent power: | 9999 VA / 99,99 / 999,9 / 1500 kVA |
| Reactive power: | 9999 var / 99,99 / 999,9 / 1500 kvar |
| PF | -1,00 ..+1,00 |
| DPF | 0,00 ..1,00 |
| Distortion: | Ripple | 0,1 ..1000 % |
| CF | 1,00 ..10,00 |
| THDr / THDf | 0,0 ..100 % / 0,0 ..1000 % |
| Harmonicals | H01 ..H25 |
