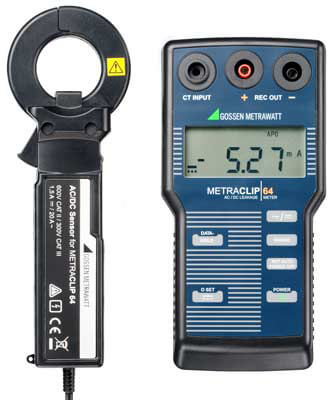

The milliampere clamp is very well suited for the measurement of small direct
and alternating currents as of a value of 1 mA.
It’s equipped with a power saving circuit, a data interface, indication of
exceeded measuring ranges and a flexible current sensor, and can be used even
under very unfavorable mechanical conditions.
| Clamp opening: | 34 mm
|
| Current: | AC | 60,00 / 600,0 A rms bei 10 Hz - 3 kHz |
| DC | ±60,00 / ±600,0 / ±900 A dc |
| AC+DC | 60,00 / 600,0 A rms
60,00 / 600,0 / 900 A peak |
| Inrush current: | | 6 ..600 A rms / 900 A peak
|
| Voltage: | AC | 60,00 / 600,0 / 1000 V rms bei 10 Hz - 3 kHz |
| DC | ±60,00 / ±600,0 / ±1000 V dc |
| AC+DC | 60,00 / 600,0 / 1000 V rms
60,00 / 600,0 / 1400 V peak
|
| Frequency: | | f (Uac) 5,0 Hz ..19,99 kHz
f (Iac) 5,0 Hz ..2999 Hz |
