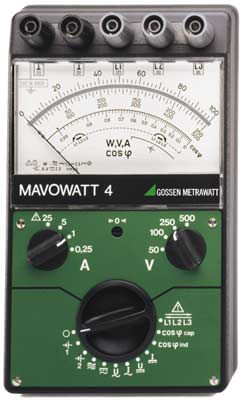

MAVOWATT 4

Name: MAVOWATT 4 | TECOSTORE.VN
Brand: Gossen Metrawatt
SKU: GM66
Availability: InStock
Rating: 5 (1 reviews)

Liên hệ

SKU: GM66 Danh mục: Chưa phân loại Thẻ: GM66 Gossen Metrawatt, Gossen Metrawatt Thương hiệu: Gossen Metrawatt

Mô tả
Thông số kỹ thuật

The multiple power meter allows for direct measurement of DC power, as well as RMS power
measurement for single-phase alternating current and balanced load three-wire, three-phase current.

4 current and 4 voltage measuring inputs with auto-ranging
Up to 20 additional inputs and outputs possible
Can be used in railway, power and onboard electrical systems (16 to 400 Hz)
High resolution of the voltage and current measuring inputs - 32 kHz / channel
Spectral analysis in accordance with EN 61000-4-7 up to the 63^rd harmonic
Acquisition of 10 user-defined sub-harmonics
Interfaces: Ethernet, USB, RS 232, RS 485
Communication protocols: TCP/IP, Modbus and DNP3
Expanded flicker measurement per EN 61000-4-15 for various voltage levels
Time synchronization via GPS or NTP

MAVOWATT 4
