MAVOSYS 10

The MAVOSYS 10 opens up entirely new possibilities for monitoring mains quality,
power and energy: It’s the first mains analyzer with more than 8 channels,
it can be configured in a modular fashion and it provides an ideal, cost-saving
solution for all requirements. In combination with an optional ¼ VGA
touch-screen, the multiuser web interface from Encore series software and
special AnswerModules®, all conceivable analysis wishes are fulfilled.

Up to four of the available input modules for 4-channel voltage,
4-channel current and 8-channel digital signals are integrated into
the MAVOSYS 10. They can be operated as stand-alone devices, or combined
into as many as 4 virtual analyzers for mains quality, power and energy.
And that saves space and reduces costs.

The MAVOSYS 10 is ideally suited for continuous monitoring in accordance
with worldwide mains quality, flicker and harmonic standards, as well as for
individually defined requirements. The voltage module has been certified by
an independent laboratory in accordance with IEC 61000-4-30, class A.
Measurements performed with the MAVOSYS 10 are precise, and reproducible,
and they fulfill the strictest requirements.

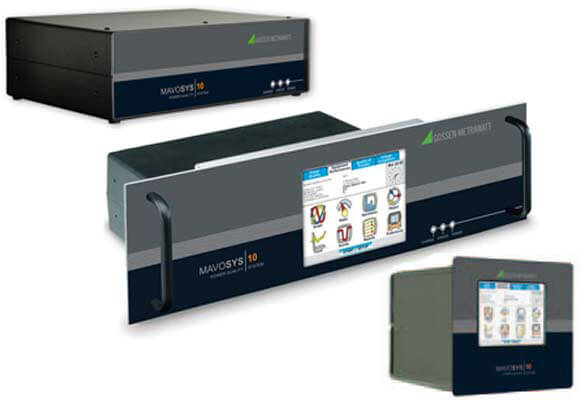

In its standard housing, the MAVOSYS 10 can be operated as a stand-alone
device, and can be mounted to 19″ cabinets with a rack fixture – with
or without ¼ VGA touch-screen. A wall mounting bracket and a weather-proof
housing for extremely adverse ambient conditions are also available. A special
version without touch-screen is available for panel mounting.
