LINAX DR2000

Secure data recording made easy

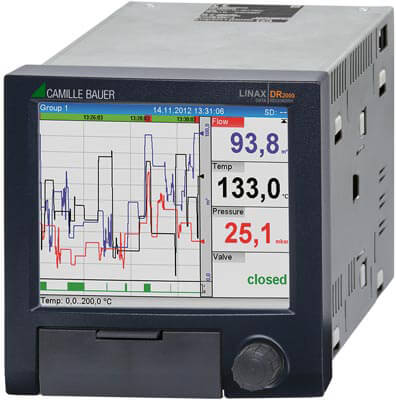

The LINAX DR2000 videographic recorder is the simple solution to record data
manipulation-proof.

With its up to 12 universal analog inputs and various visualization modes,
such as curves, waterfall and bar graph, it is universally usable in many
applications. With its additional 6 digital inputs other values can be recorded,
operating times and switch states of additionally connected devices or time
synchronization. The recorded measurements are additionally stored on a 128
megabyte internal memory and optionally on a SD card.

By using modern interfaces such as Ethernet and various communication
possibilities such as Modbus TCP/RTU slave, data can be automatically
transmitted to primary systems. Through this a simple system connection is
possible.

Up to 30 limit values can be freely assigned to the channels. Limit value
infringements are displayed and stored in the device. Furthermore 6 internal
relays can be used for alarm transmission. The flxibility of the LINAX DR2000 is
increased through the optional 4 mathematics channels. The device can make
individual calculations which can be simply entered using a formula editor.
