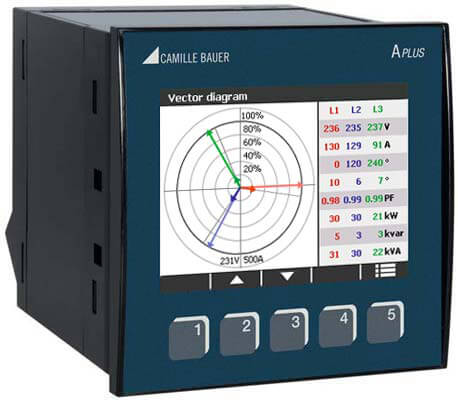

The APLUS is a comprehensive instrument for the universal measurement,
monitoring and power quality analysis in power systems.

The focus is on highest Swiss quality and maximum customer benefit.

The device is suited for the application in power distribution, in strongly
distorted industrial environments and in building automation. Nominal voltages up to 690 V can directly be connected.

The connection of the process environment may be performed by means of the
communication interface, via digital I/Os or via analog outputs.

New: The data logger allows to record periodical
and event triggered measurement data, especially load profiles, measurement
fluctuations or meter readings as well as alarm states or any other incident. An
SD card is used as a storage media, which allows almost unlimited recording
times. Data can be analyzed with CB-Analyzer software.

Direct measurement up to 690V, CAT III
Class 0.1 (U/I), class 0.2% (P/Q/S), class 0.5S (meters)
Condition monitoring
Energy consumption analysis (Meters, load curves, trend analysis)
Harmonic analysis acc. IEC 61000-4-7
System imbalance monitoring
Limit monitoring with alarming
Universal process I/O
Standard-I/Os (1 digital input, 2 digital outputs)
Ethernet interface and MODBUS/RTU
For measurement acquisition via control system.
Device parameterization via WEB browser
Firmware update, measurement display, service and maintenance
