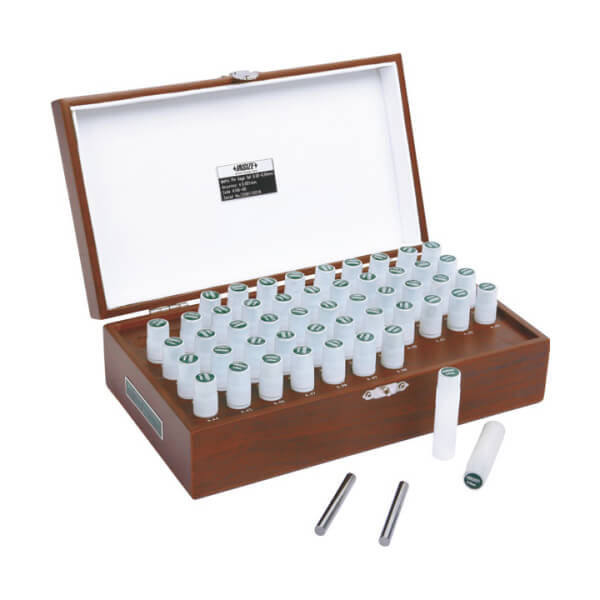

Bộ trục chuẩn Insize 4166-8S

Name: Bộ trục chuẩn Insize 4166-8S | TECOSTORE.VN
Brand: Insize
SKU: 4166-8S
Availability: InStock
Rating: 5 (1 reviews)

Liên hệ

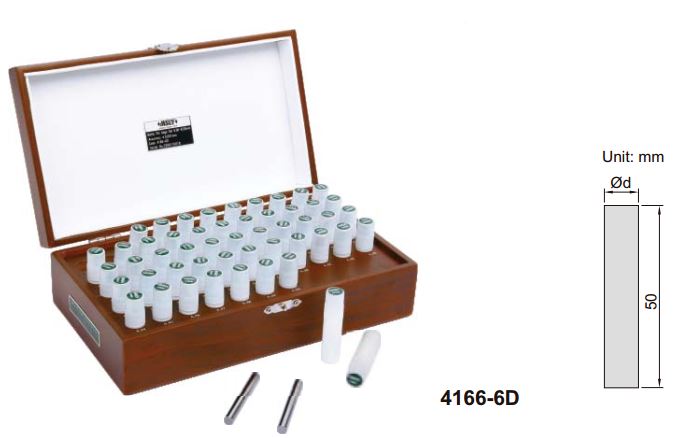

Bộ trục chuẩn Insize 4166

Mã đặt hàng	Đường kính Ød (mm)	Bước	Số trục chuẩn mỗi bộ
4166-2S	1.00, 1.01, 1.02, •••• 2.00	0.01mm	101
4166-3S	2.00, 2.01, 2.02, •••• 3.00	0.01mm	101
4166-4S	3.00, 3.01, 3.02, •••• 4.00	0.01mm	101
4166-5S	4.00, 4.01, 4.02, •••• 5.00	0.01mm	101
4166-6S	5.00, 5.01, 5.02, •••• 6.00	0.01mm	101
4166-7S	6.00 ,6.01, 6.02, •••• 7.00	0.01mm	101
4166-8S	7.00, 7.01, 7.02, •••• 8.00	0.01mm	101
4166-9S	8.00, 8.01, 8.02, •••• 9.00	0.01mm	101
4166-10S	9.00, 9.01, 9.02, •••• 10.00	0.01mm	101

Mã đặt hàng	Đường kính Ød (mm)	Bước	Trục chuẩn mỗi bộ
4166-411	1.0, 1.1, 1.2, •••• 5.0	0.01mm	41
4166-511	5.0, 5.1, 5.2, •••• 10.0	0.01mm	51
4166-512	10.0, 10.1, 10.2, •••• 15.00	0.01mm	51
4166-513	15.0, 15.1, 15.2, •••• 20.0	0.01mm	51

Mã đặt hàng	Đường kính Ød (mm)	Bước	Trục chuẩn mỗi bộ
4166-OD	0.20, 0.21, 0.22, •••• 0.50	0.01mm	31
4166-1	0.50, 0.51, 0.52, •••• 1.00	0.01mm	51
4166-1D	1.00,1.01,1.02, •••• 1.50	0.01mm	51
4166-2	1.50, 1.51,1.52, •••• 2.00	0.01mm	51
4166-2D	2.00, 2.01, 2.02,•••• 2.50	0.01mm	51
4166-3	2.50, 2.51, 2.52, •••• 3.00	0.01mm	51
4166-3D	3.00, 3.01, 3.02, •••• 3.50	0.01mm	51
4166-4	3.50, 3.51, 3.52, •••• 4.00	0.01mm	51
4166-4D	4.00, 4.01, 4.02,•••• 4.50	0.01mm	51
4166-5	4.50, 4.51, 4.52,•••• 5.00	0.01mm	51
4166-5D	5.00, 5.01, 5.02,•••• 5.50	0.01mm	51
4166-6	5.50, 5.51, 5.52, •••• 6.00	0.01mm	51
4166-6D	6.00, 6.01, 6.02, •••• 6.50	0.01mm	51
4166-7	6.50, 6.51, 6.52,•••• 7.00	0.01mm	51
4166-7D	7.00, 7.01, 7.02, •••• 7.50	0.01mm	51
4166-8	7.50, 7.51, 7.52, •••• 8.00	0.01mm	51
4166-8D	8.00, 8.01, 8.02, •••• 8.50	0.01mm	51
4166-9	8.50, 8.51, 8.52, •••• 9.00	0.01mm	51
4166-9D	9.00, 9.01, 9.02, •••• 9.50	0.01mm	51
4166-10	9.50, 9.51, 9.52, •••• 10.00	0.01mm	51

Mã đặt hàng	Đường kính Ød (mm)	Bước	Trục chuẩn mỗi bộ
4166-10D	10.00, 10.01, 10.02, •••• 10.50	0.01mm	51
4166-11	10.50, 10.51, 10.52, •••• 11.00	0.01mm	51
4166-11D	11.00, 11.01, 11.02, •••• 11.50	0.01mm	51
4166-12	11.50, 11.51, 11.52, •••• 12.00	0.01mm	51
4166-12D	12.00, 12.01, 12.02, •••• 12.50	0.01mm	51
4166-13	12.50, 12.51, 12.52, •••• 13.00	0.01mm	51
4166-13D	13.00, 13.01, 13.02, •••• 13.50	0.01mm	51
4166-14	13.50, 13.51, 13.52, •••• 14.00	0.01mm	51
4166-14D	14.00, 14.01, 14.02, •••• 14.50	0.01mm	51
4166-15	15.0, 10.1, 10.2, •••• 15.00	0.01mm	51
4166-15D	15.00, 15.01, 15.02, •••• 15.50	0.01mm	51
4166-16	15.50, 15.51, 15.52, •••• 16.00	0.01mm	51
4166-16D	16.00, 16.01, 16.02, •••• 16.50	0.01mm	51
4166-17	16.50, 16.51, 16.52, •••• 17.00	0.01mm	51
4166-17D	17.00, 17.01, 17.02, •••• 17.50	0.01mm	51
4166-18	17.50, 17.51, 17.52, •••• 18.00	0.01mm	51
4166-18D	18.00, 18.01, 18.02, •••• 18.50	0.01mm	51
4166-19	18.50, 18.51, 18.52, •••• 19.00	0.01mm	51
4166-19D	19.00, 19.01, 19.02, •••• 19.50	0.01mm	51
4166-20	19.50, 19.51, 19.52, •••• 20.00	0.01mm	51
