Mô tả

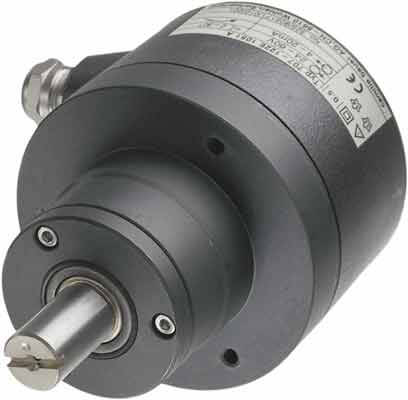

Measuring transducer with contactless, capacitive sensing system for
acquiring the angular position of a shaft. A load-independent DC signal with a
range of 4 to 20 mA is read out at the measurement output. Due to its rugged
design, it is used primarily in machinery manufacturing and shipbuilding.
| Identical Data for all Types: |
| Type | 1-axis |
| Measuring principle | magnetic / hall-sensor |
| Pendulum damping | silicon oil |
| Measuring range | 0 ... 360° |
| Basic accuracy | ± 0.2° |
| Transient response | at 25° tilt <1 sec. |
| Temperature range | -30°C ... +70°C |
| Temperature influence | 0.1° / 10K (>100°) |
| Reverse polarity protection | yes |
| Test voltage | 500 Veff., 50 Hz, 1 min. |
| Emitted interference | EN 61 000-6-4 |
| Immunity to interference | EN 61 000-6-2 |
